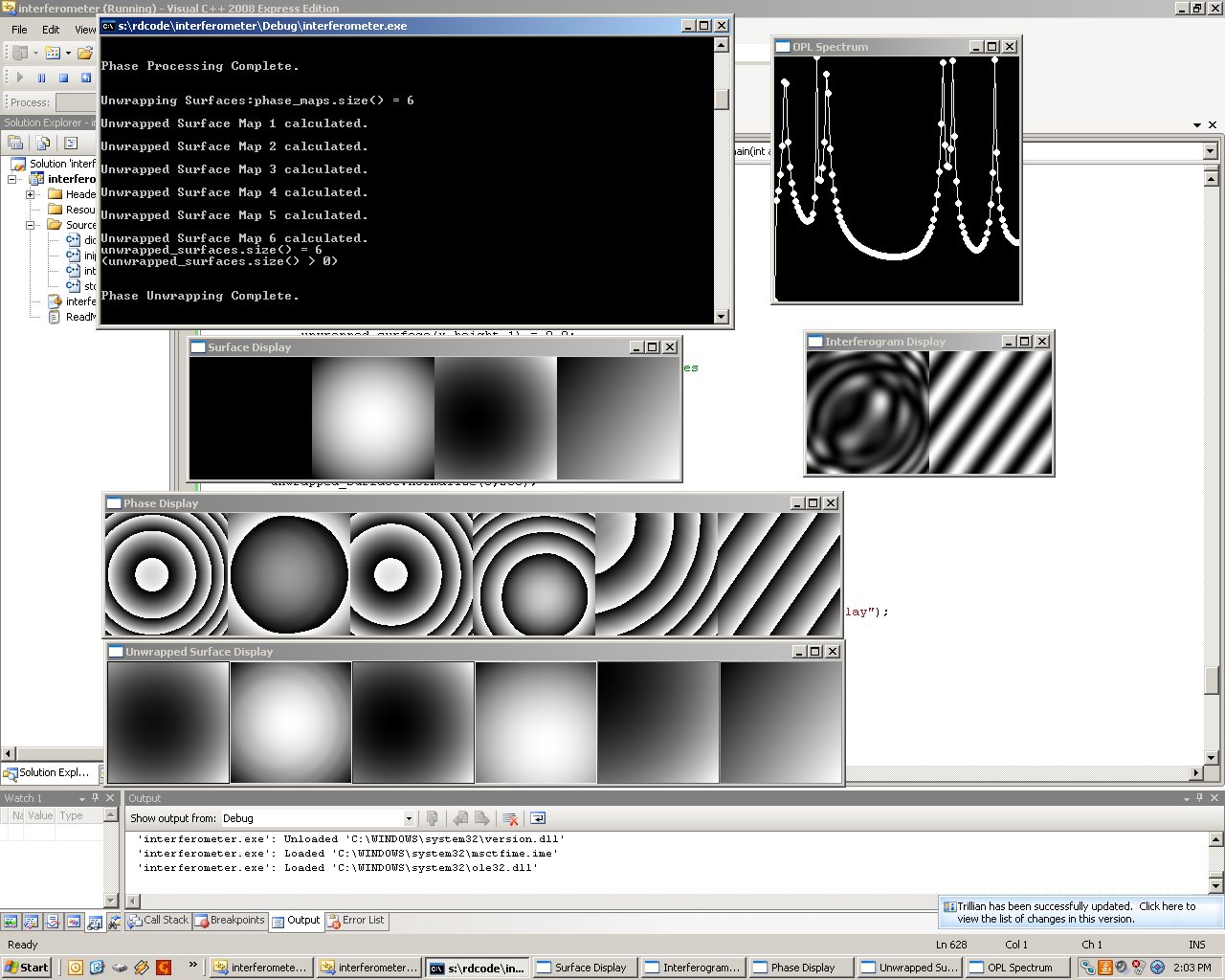

This is a virtual frequency scanning interferometer implementation for measuring the index homogeneity and surface figure of an optical substrate. This code implements the technique described by Leslie Deck with the Zygo corporation. Here is a link to the original paper by Deck:

https://www.osapublishing.org/ao/abstract.cfm?uri=ao-42-13-2354

This is a way to build an interferometer using a frequency scanning source, where phase shifting is not necessary.

This is not an example of excellent programming, but of the implementation of a tricky physics and mathematical system. I wrote this long ago, and write much better software every day.

FYI, this is rather old, it was written in 2008... I have updated it so you can download it and compile and run in Visual Studio 2017.



http://www.rettc.com/files/interferometer-final/

http://www.rettc.com/files/interferometer-final.zip



interferometer

A tilt hydrometer is this little device that acts as a bluetooth low energy beacon, ie, it acts like Apple's iBeacon doodas. So you don't have to pair to the device to read it. It just spews out data every second or so, and if you are listening, you can receive the data.



https://kvurd.com/blog/tilt-hydrometer-ibeacon-data-format/

https://tilthydrometer.com/



This device has a battery, an accelerometer, and a thermometer. So, based on the angle that it floats in a liquid, using the accelerometer and gravity, it can tell you the specific gravity of the liquid, and of course the temperature. Good for brewing beer! But also good for other things, such as monitoring various process fluids in a production plant. Think CNC coolant, polishing slurry, etc.

So, how do you read these things in Windows 7? What, you have learned that the bluetooth low energy stack is only implemented in Windows 10? You like linux, but you have a bunch of Win7 machines running all of the stuff in your plant?

Fear not. Thanks to Wouter Huysentruit, who has written a BLE stack that runs fine in Windows 7. You can download Visual Studio Community Edition 2017, and start developing C# .NET apps on Windows 7 that read iBeacon devices. Great!



https://github.com/huysentruitw/win-beacon



I bought the Pluggable BT Radio Dongle and the thing works right out of the box. Just plugin in the dongle, switch to the WinUSB driver, get the source code from github, open the solution, and run it. Voila! Also, you can make your BLE dongle act as an iBeacon device (transmitter) as well.

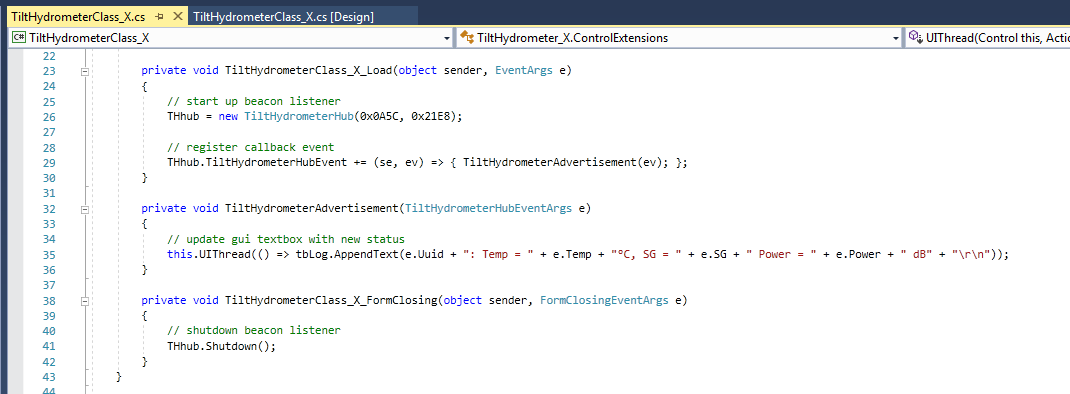

I wrote a little wrapper that makes an object which references the win-beacon package that fires off an event that you can subscribe to from a parent class or app that looks about like so:





Hello,



I am in the process of creating an open source, MIT licensed repository so I can share some of my various labors and problem solving source code.



https://github.com/mrlucretius/root



This will include:



  • Fourier-transform frequency-scanning interferometry
  • iBeacon receiver / transmitter for Win7 as a simple wrapper for win-beacon.
  • C# image processing library. I have written and re-written many functions, so I need to get it all together in one library.
  • Other stuff.



Right now, nothing is there, however, I will update it over time.
